Design of OMR Answer Sheet – Components & Variations

The OMR (Optical Mark Recognition) Answer Sheet is the most commonly used format in academic, corporate, and competitive testing processes. It enables quick, accurate data capture from large-scale assessments.

While all OMR sheets serve the same fundamental purpose, their design, layout, and structure may vary depending on exam requirements and institutional preferences. However, most OMR answer sheets share a set of standard components.

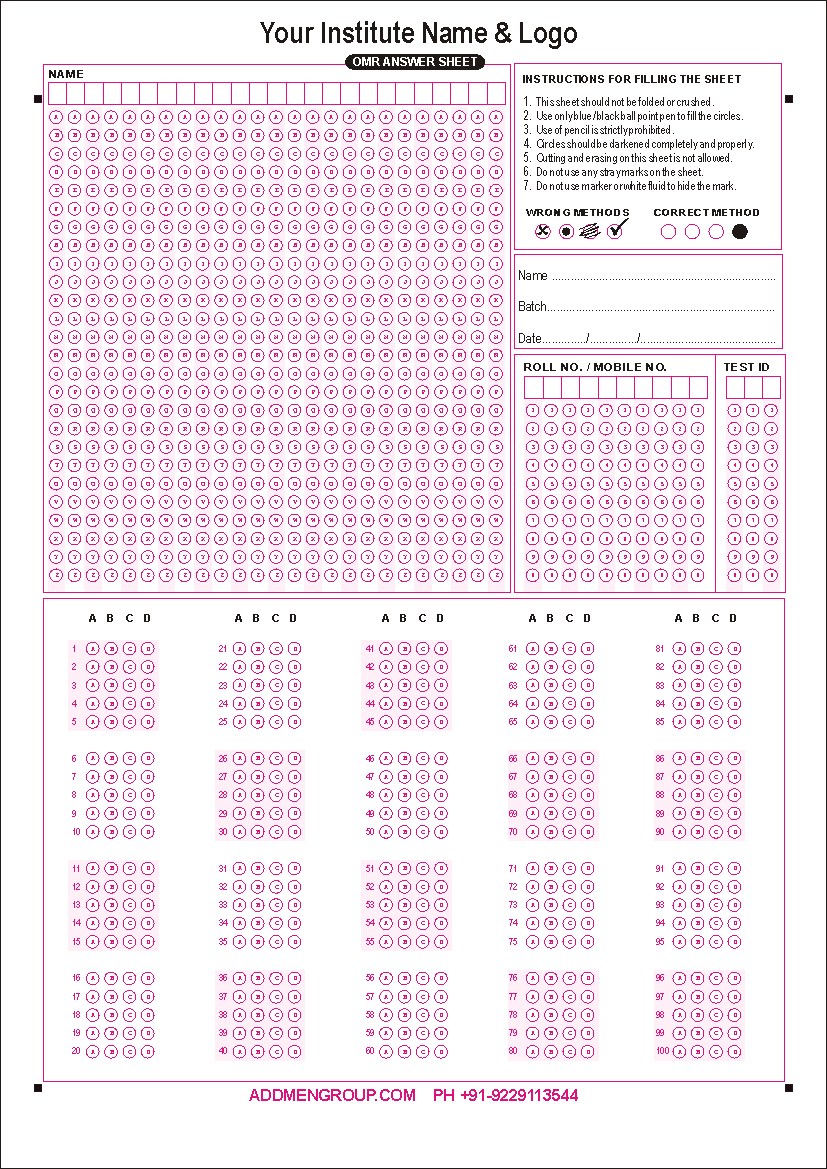

Common Components of an OMR Answer Sheet

1. Question Blocks

2. Roll Number or Candidate Identification Block

3. Test Paper Set / Question Paper Code

4. Candidate Personal Information Fields

5. Instructions for Filling the Sheet

6. Signature and Authentication Boxes

These core components appear in nearly every OMR answer sheet design, though their presentation and configuration may differ depending on the use case.

Detailed Overview of OMR Answer Sheet Components

1. Question Blocks

The question block is the main area where candidates mark their responses.
Different exam patterns use different types of question blocks:

• Single Row MCQ Blocks:
  Standard multiple-choice layout with 4–5 options (A–D or A–E).
• Matrix-Type MCQ Blocks:
  Grid layouts (e.g., 4x4 or 4x5) for structured or grouped questions.
• Integer-Type Question Blocks:
  Used for numeric responses, resembling a Roll Number Block but with a column count equal to the number of digits in the expected answer.

2. Candidate Identification Block (Roll Number / Alphanumeric Block)

Every OMR sheet must include a unique candidate identifier, ensuring each sheet is accurately linked to the correct student or test taker. This identifier can be in numeric or alphanumeric format, depending on the institution’s system.

a. Numeric Roll Number Block

• Typically presented as a matrix of bubbles, with 10 rows (digits 0–9) and columns corresponding to the roll number length.
  Example: A 5-digit roll number requires a 10x5 matrix.

• Candidates darken one bubble per column to represent their roll number.

b. Alphanumeric Identification Block

Some organizations use alphanumeric candidate codes (a mix of letters and numbers).
To accommodate these, the OMR sheet can include an alphanumeric block featuring:

• Rows of letters (A–Z) and digits (0–9).

• Configurable grid sizes depending on code length (e.g., 36x6 for 6-character IDs).

• Full compatibility with OMR software that reads both numeric and alphabetic values.

This feature is especially useful for corporate assessments, scholarship programs, and international examinations where candidate IDs follow mixed character formats.

c. Barcode-Based Identification

For higher accuracy and security, some sheets use pre-printed barcodes instead of manual roll number entry.
The barcode acts as a unique machine-readable identifier, captured automatically by the OMR software’s integrated barcode reader.

3. Test Identification Block (Test Paper / Set Code)

This block identifies the test paper version or set code, especially when multiple question sets are used.

• Optional in Single-Set Exams: When all candidates have the same paper.

• Essential in Multi-Set Exams: Used in government or competitive exams where multiple shuffled papers exist.

4. Candidate Personal Information Fields

Fields such as Name, Father’s Name, Gender, Category, Date of Birth, and Mobile Number may be included based on the examination type.

• Private institutions and scholarship exams often include these fields.

• Confidential or government exams may exclude them, using barcodes instead to conceal identity.

These fields are helpful for manual verification when candidates make errors in roll number marking.

5. Instructions and Authentication Areas

This section provides guidelines on how to fill the OMR sheet and includes spaces for signatures or institutional stamps.

• Some formats include only the candidate’s signature, while others require:

  • Candidate

  • Invigilator

  • Supervisor signatures

  • Institute stamp

This area can be customized based on exam-level protocols and security requirements.
